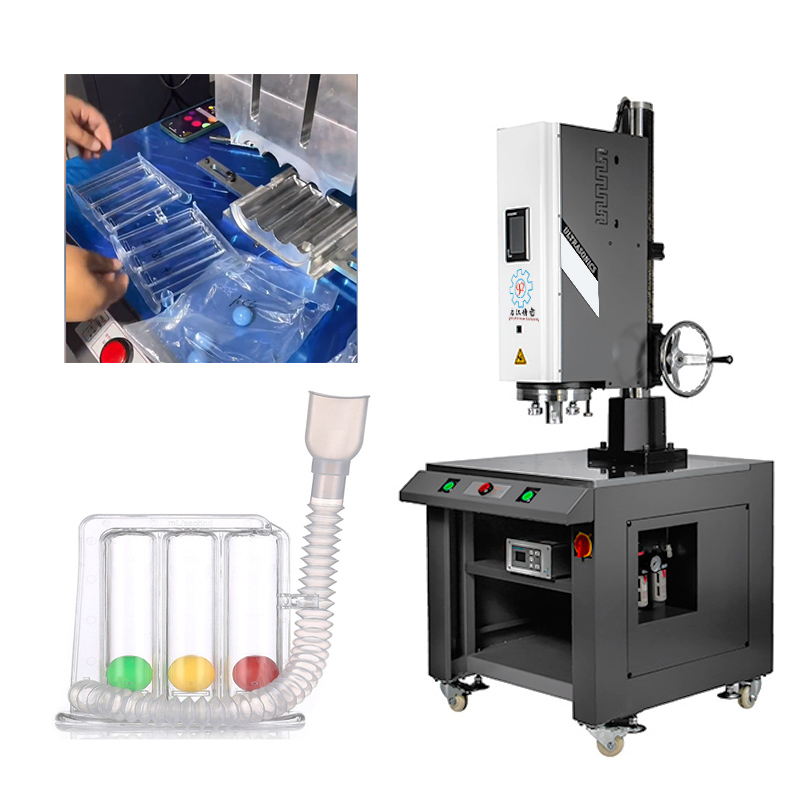

Vital capacity breathing trainer ultrasonic welding machine

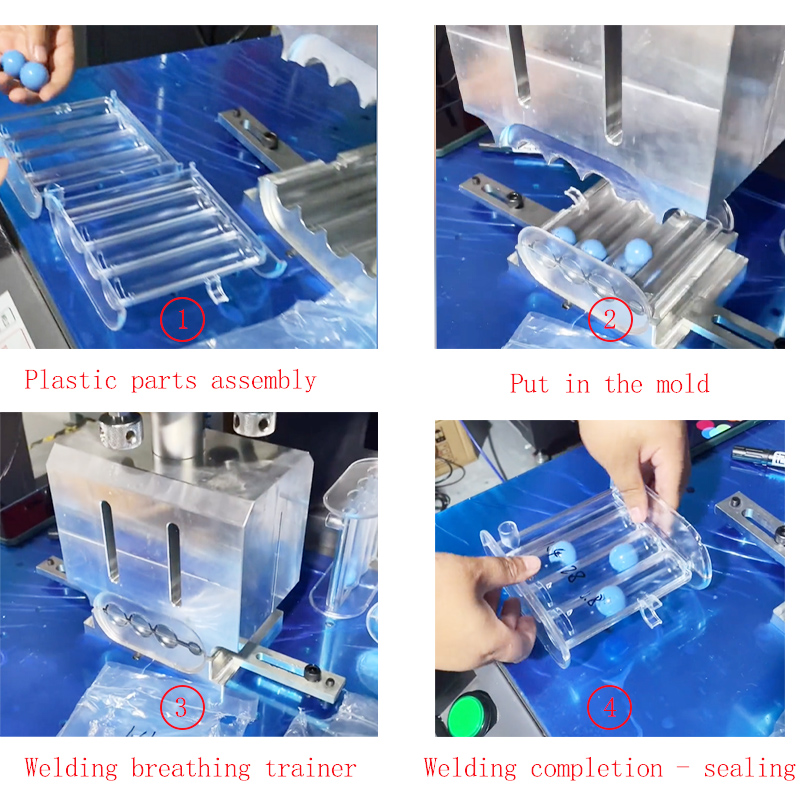

The Vital capacity breathing trainer device comprises a training device body, a corrugated pipe and a biting mouth. The main body is composed of two ABS or PS plastic shells and three to four round plastic shells. During production, the plastic parts are assembled and sealed with an ultrasonic welding machine.


Introduction of pulmonary function breathing training device

Scope of application

After the decline of pulmonary function caused by chest and lung diseases, surgery, anesthesia and mechanical ventilation, the patient's pulmonary respiratory function recovered; Reduce and prevent postoperative pulmonary complications.

Product specifications

Inspiratory volume main body (600ml, 900ml, 1200ml)

Product structure composition

EVA corrugated pipe, PP nip, P indicator ball 1PCS/pkg packaging




Equipment parameters

Operating voltage/air source

220V±10%/0.2-0.7Mpa

Welding stroke 75mm-100mm

Lifting mode: manual

Horizontal adjusting plate: L750W6780

Cooling system: air cooling

Control system/energy conversion system: QDSONIC

Auxiliary function: preparation/end action: 0-10S dual station: not supported

Working frame: cylindrical

Working base: deluxe table

Body color: grey/green

Body size: L750 * W900H1900

Net weight of machine body: ≤ 260KG

Operation interface: 4.3 inch inner touch screen

System language: Chinese/English

System security: management password

Digital circuit system: real-time automatic frequency tracing

Working mode: button type/external lift type

Welding mode: time energy grounding

Trigger mode: delay

Amplitude management: amplitude grading/amplitude adjustment/amplitude compensation

Mold protection: impedance analysis protection/vibration self cleaning

Safety management: power overload protection/power voltage protection/transducer protection

Quality management: time energy

Four layers of intelligent management: amplitude management/quality management/data management/security management

Data management: welding records/data statistics

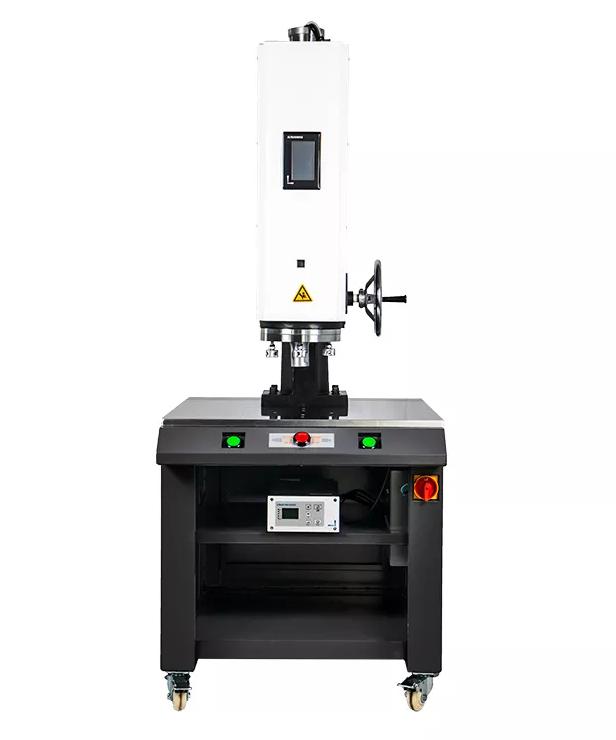

Equipment parameters Ultrasonic plastic welding machine DS300 series has three welding modes: time, energy and grounding; It can automatically track and display the real-time frequency, with amplitude grading function, and the welding amplitude range can reach 10-100 (1% accuracy). And amplitude compensation; Welding quality management (mutual detection of time and energy) includes clear and traceable welding records (operation statistics) to control your welding quality in real time. It also has transducer overload protection, mold impedance analysis and protection to protect your equipment. Strong function, excellent quality and high welding stability. It is your best choice for plastic welding.

advantage:

Real time frequency automatic tracking display;

Welding mode: time, energy, grounding

Amplitude grading function;

Welding amplitude 10-100 adjustable (1% accuracy)

Amplitude compensation

Mold impedance analysis+protection

Overload protection;

Quality management (mutual detection of time and energy)

Welding records (operation statistics);

Powerful function, excellent quality and high welding stability

Vital capacity breathing trainer ultrasonic welding machine
