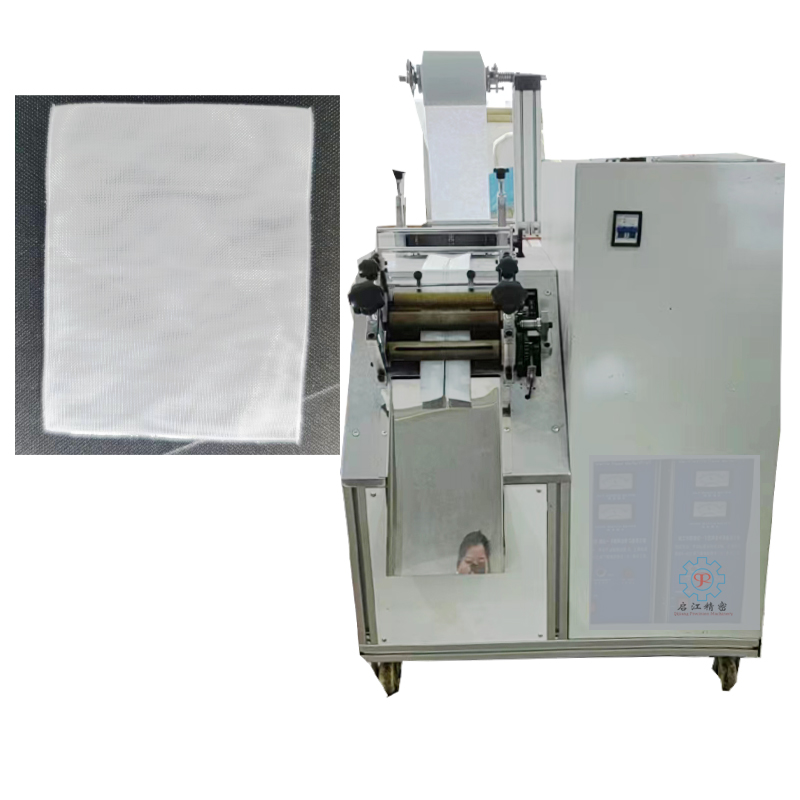

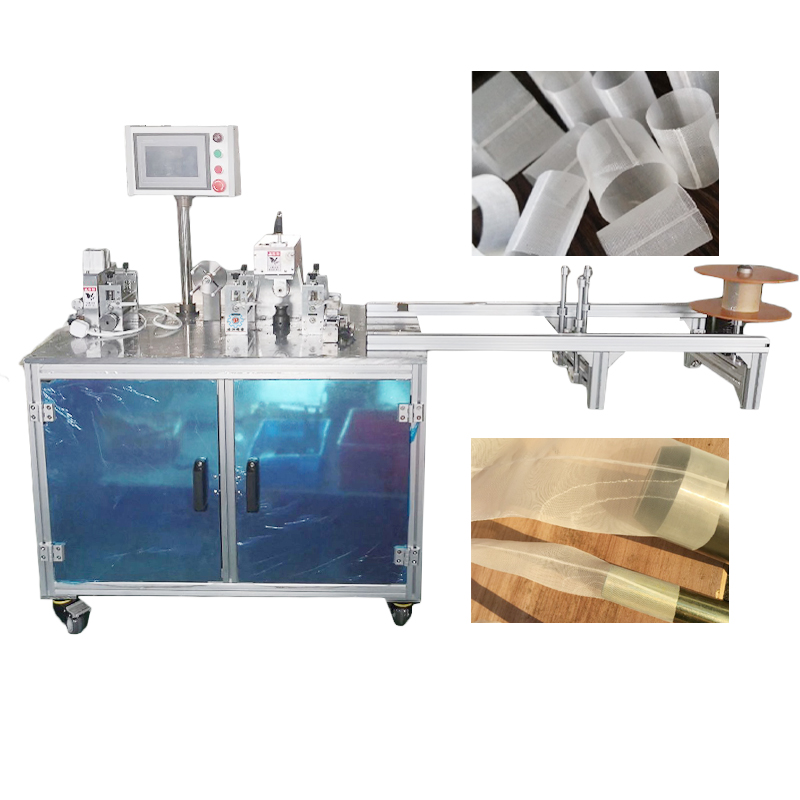

Automatic edge sealing machine for nylon mesh bag

Two rolls of nylon mesh are automatically fed, welded and cut to complete the forming and edge sealing welding of nylon mesh bag.The two ultrasonic waves work together, PLC touch screen control, and motor drive.

Parameters of full-automatic nylon bag ultrasonic welding machine

Power supply requirements: 220V ± 5V 50HZ (60HZ)

Operating frequency: 18KHZ

Power: 3.5KW

Working speed: 0-10m/min

Maximum width: 200mm

Flower wheel: 200mm wide, variable diameter

Size:1200*700*1500MM

Product quantity:15-50(Determined according to bag size)

Type: automatic
