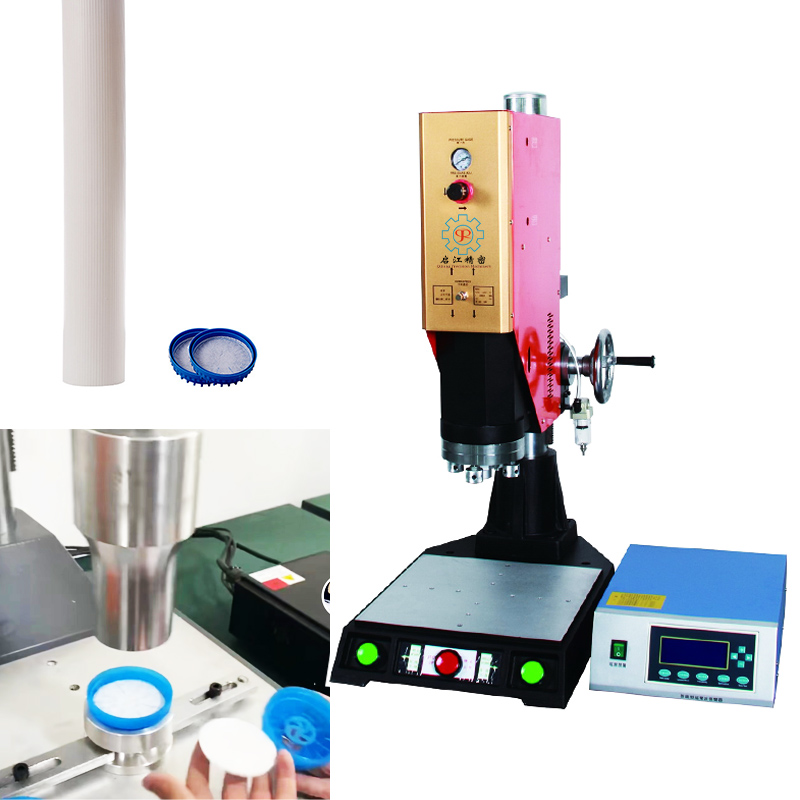

UDF granular activated carbon filter element plastic end cover shell and filter cotton welding machine

The end position of UDF granular activated carbon is composed of ABS plastic cover and non-woven filter cotton. The two parts are heated by vibration friction of ultrasonic welding machine and then cooled and fixed to ensure that the activated carbon has no leaking particles.

Function
1526
Machine size700*400*1000MM
Generator size380*280*120MM
 weight82KG
Cylinder stroke75MM
Power Supply220V/50HZ
Frequency15KHZ
power2600w
welding modeltime
Output time0.001-9.999
welding areaØ180mm
ColourBlue/Red

The output per minute is about 20. If the production capacity is upgraded, semi-automatic non-standard automatic customization can be carried out. The plastic cover and filter cotton of the activated carbon filter are manually put into the tooling. The rotary table is rotated to the welding position. After the welding is completed, the cylinder is automatically ejected or grabbed by the next station

.

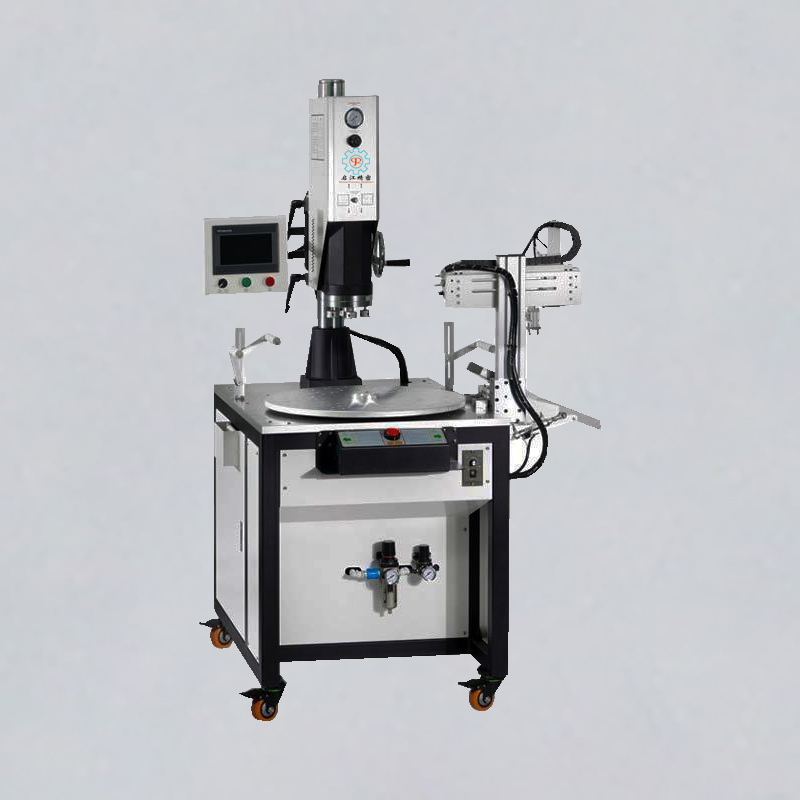

Function
ZP-BZ
Machine size1100*950*1860mm
Working table size700*950MM
 weight300KG
Turntable diameter580mm(6-8station)
Cylinder stroke75MM
Power SupplyAC220V/50HZ
Frequency15/20KHZ
power0-3200w
welding modeltime
Output time0.001-9.999
amplitude adjustment1%-100%



UDF granular activated carbon filter element plastic end cover shell and filter cotton welding machine
