Principle:
The main principle of ultrasonic welding machine is to use vibration, friction, and heat accumulation to weld PET film and ABS strip, reducing manual cutting and pasting costs, improving work efficiency. It saves the use of kraft paper tape, double-sided tape, etc. during traditional pasting, and ensures one-time welding and firm welding. Using an intelligent ultrasonic generator to protect electronic devices and extend the service life of the machine. Easy to operate and convenient, making it an ideal equipment for plate making companies and cardboard factories
Welding material:

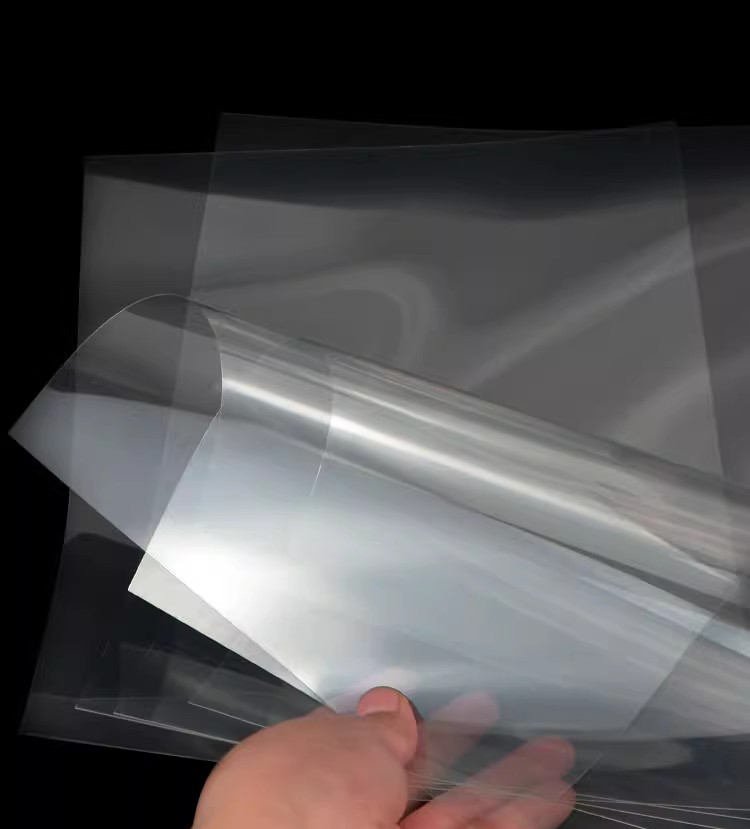

PET plastic film (0.175mm)

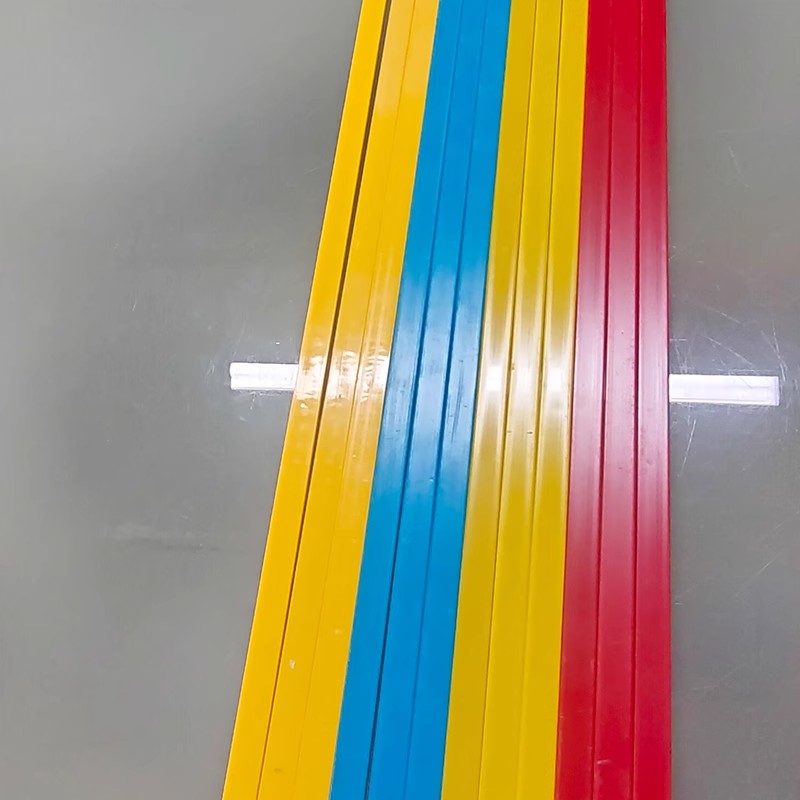

ABS, PVC plastic strip, thickness 3mm
This machine is suitable for hanging plate substrates of the following sizes
Width: It can be made from 100mm to 2250mm, which matches the circumference of the printing press plate roller.
Length: It can be processed from 100mm to 4000mm and is a parameter that matches the layout size.
Introduction:
1. Upgrade the small button screen to a 4.3 inch LCD display!
2. Welding length: 350mm per section
3.4.2kw high-power ultrasonic, frequency conversion technology, energy-saving, and good welding effect! High yield!
4. Upgraded air pressure display, fixed air pressure of 7 kilograms, better welding effect!

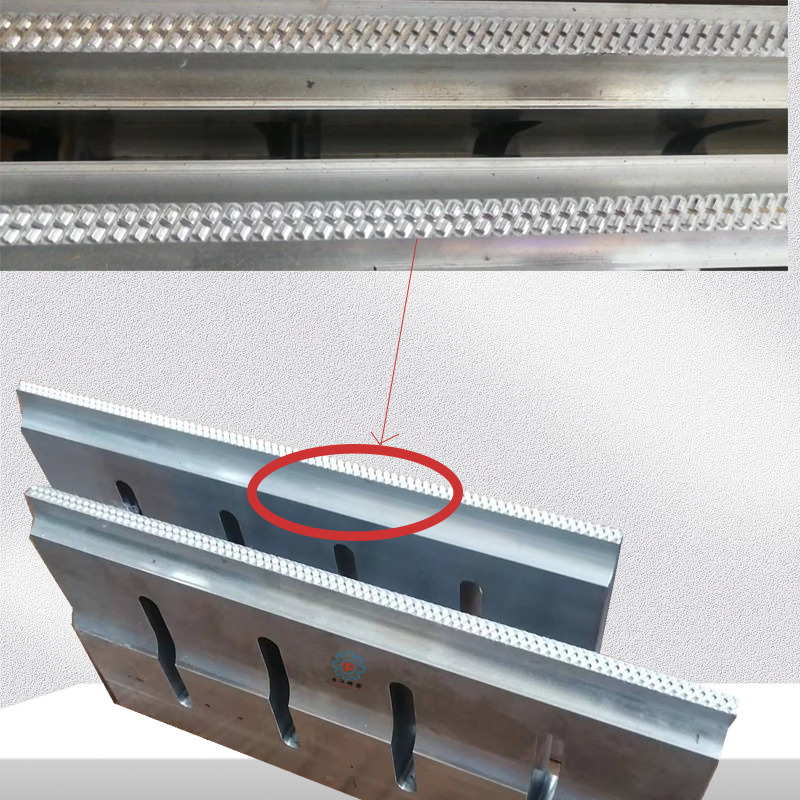

5. The ultrasonic horn is made of 7075 alloy aluminum, and the surface is treated with hard oxidation after CNC machining

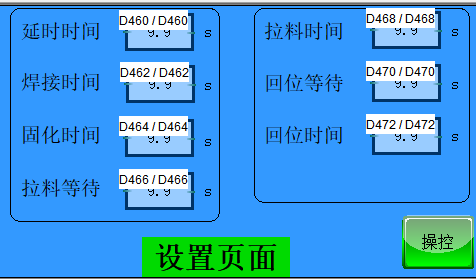

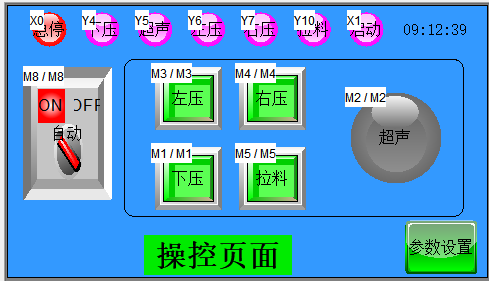

（ Parameter setting interface）

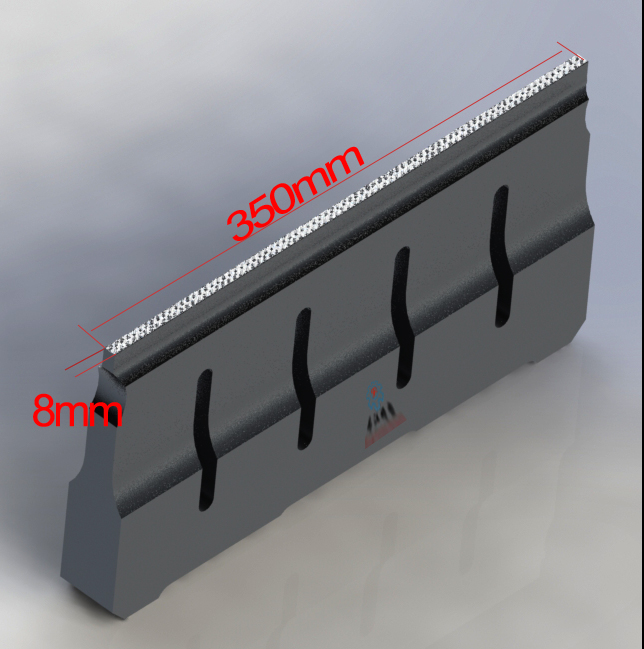

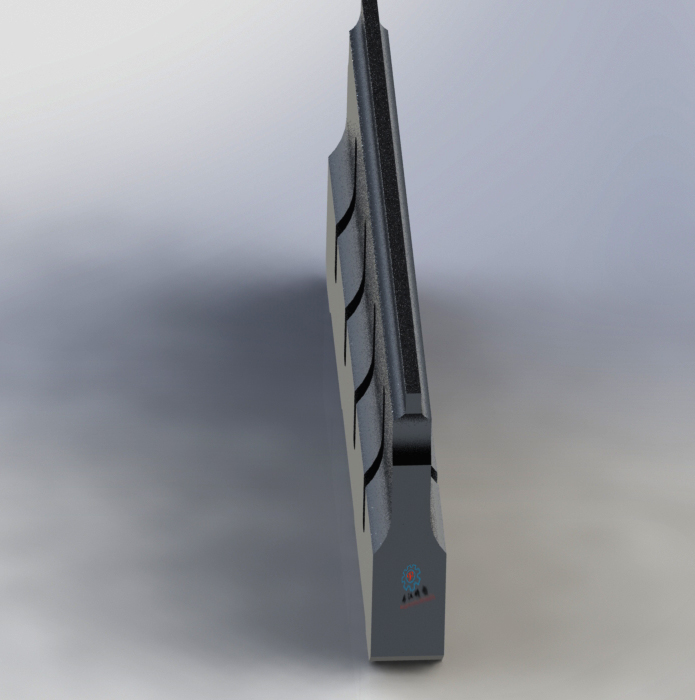

（ultrasonic horn）
Features:

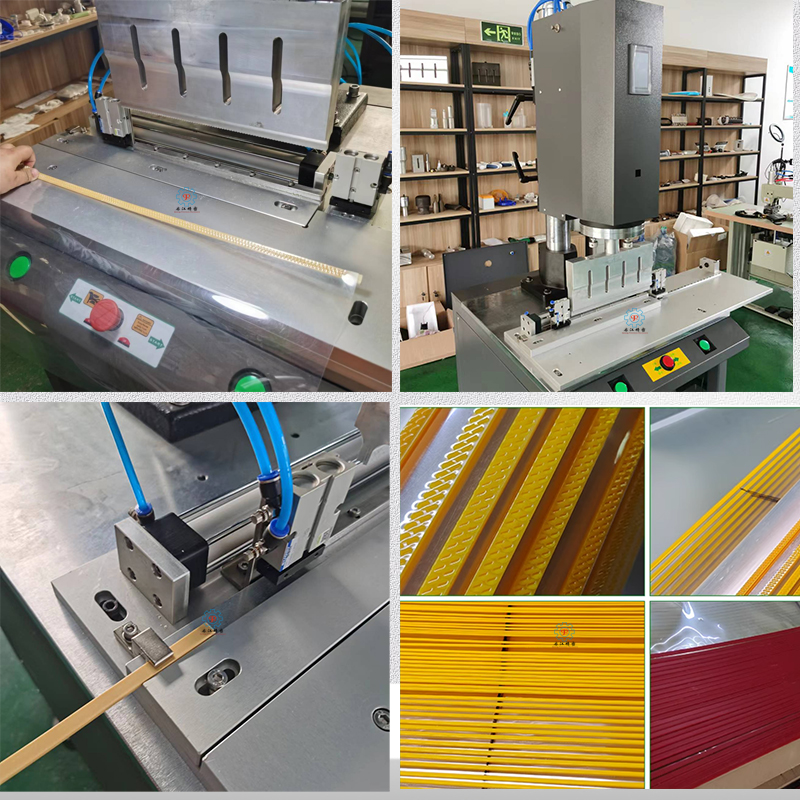

1. Stick and weld the hanging Flat noodles on the PET polyvinyl acetate film, with fast process and short time
2. The welding is firm, not easy to fall off, the welding surface is smooth, and the welding operation can be repeated
3. Reduce manpower demand and improve productivity
Parameters:
1. Function: Adjust parameters according to customer on-site requirements to complete the welding of plastic strips and PET films.
2. Power supply: AC 220V+10% 50Hz
3. Air source pressure: 0.2MPa~0.7MPa
4. Machine power: 4200W, working frequency: 15KHz
5. Production efficiency: around 5m/minute
6. The mold is toothed, forming more firmly
7. The adhesion time is determined according to the product quality requirements. The mold lowering time is 09 seconds (adjustable), the welding time of the hanging plate strip base is 0-9 seconds (adjustable), and the hardening time of the hanging plate strip base is 0-9 seconds (adjustable)
8. The stroke of the feeding cylinder is 350mm, ensuring the production of PET film substrate with a length of 350mm-5000mm
9. The machine adopts PLC control. Precise feeding using cylinder, segmented pressing, total length set according to product requirements, with a pressing length of 350mm per time
10. The machine only needs one person to operate, mainly responsible for starting and discharging materials
11. Machine size: 1100 (length) x 800 (width) x 2100 (height) net weight: 333Kg
12. Package size: 1270 * 950 * 2300 Gross weight: 500kg
Operation steps:
1. Set the required processing parameters and turn on the power supply
2. Press the start button to start ultrasonic welding processing work
When the machine is working normally, the operator cooperates with the machine to transport welding materials forward and complete the entire operation process (the feeding process needs to ensure that the hanging plate strip and PET film are placed in the groove)
Correct installation method of PVC Sheet to fix designed flexo plate
