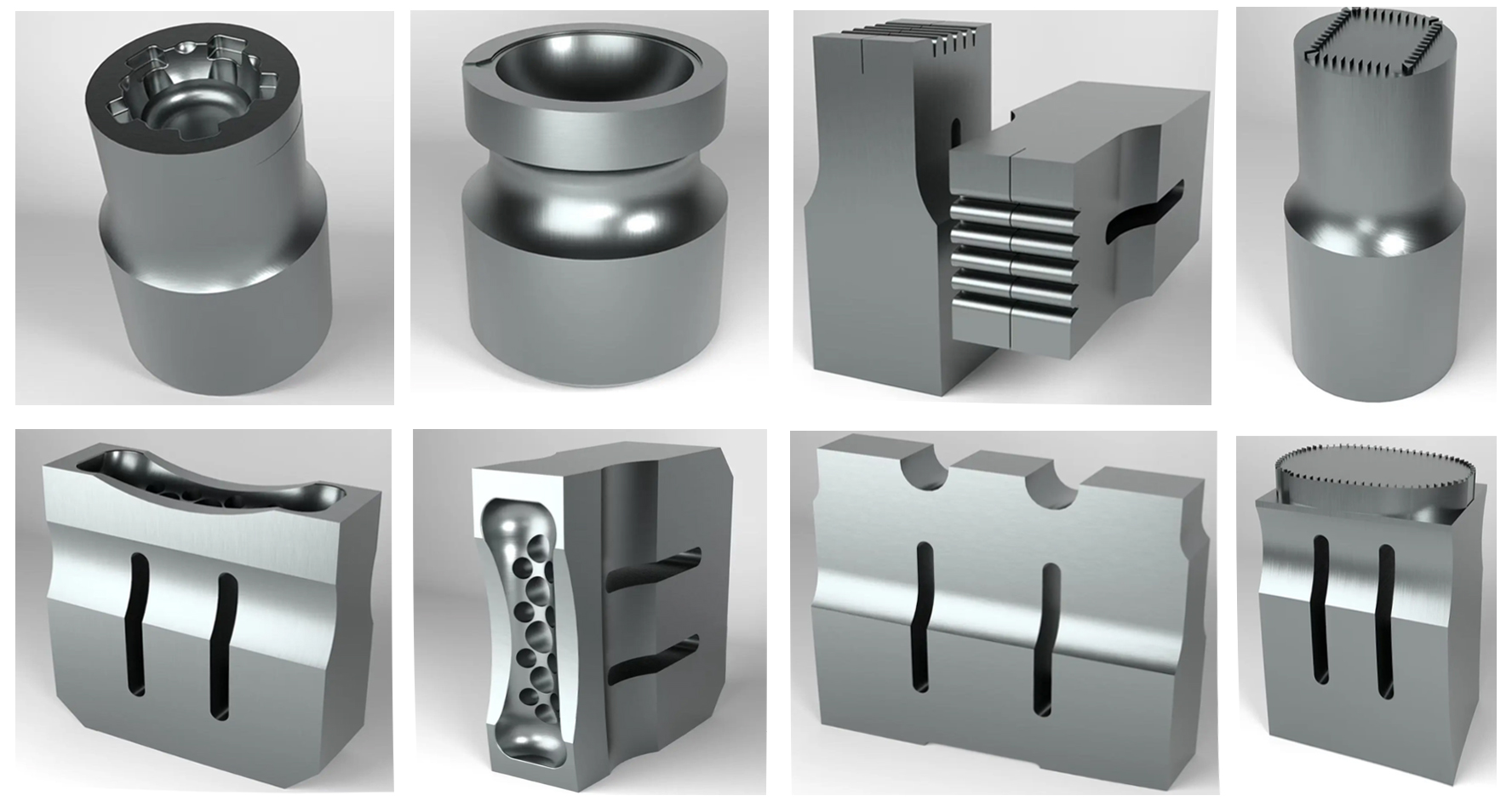

Ultrasonic horn and anvil set—also referred to as a male-female horn or sonotrode-die combination—is designed for high-precision plastic or fabric welding application.The horn delivers high-frequency vibration, while the anvil provides clamping support, enabling consistent and airtight welds without additional materials.
Technical Specifications:
Item Description
Frequency 20 kHz /15KHZ / 40KHZ / 35 kHz /28KHZ
Power Range 800 W – 2000W-2600W– 3600w– 4200W
Material Titanium alloy / 7075AL alloy
Surface Finish Polished
Structure Type Customized male-female structure
Application Plastic or fabric
✅ Key Features:
Precisely matched horn-anvil pair ensures reliable sealing
High hardness, long service life, and wear resistance
Suitable for high-speed automated welding systems
Modular design for easy replacement and alignment
Compatible with all QiJiang ultrasonic generators and actuators
???? Why Choose QiJiang Precision:
Over 10 years of experience in ultrasonicwelding
In-house design, simulation, and machining of horn/anvil tools
Support for custom mold development and rapid prototyping
Stable export supply to Europe, Southeast Asia, India, and more
