Airbag ffc clock spring ribbon cable ultrasonic welding machine

气囊FFC时钟弹簧带状电缆的超声波焊机是一种用于焊接这些电缆的特殊设备。这种焊接机结合了超声波技术和专门设计的夹具，以实现可靠的焊接连接。

The ultrasonic welding machine for airbag FFC clock spring ribbon cables is a special equipment used for welding these cables. This welding machine combines ultrasonic technology and specially designed fixtures to achieve reliable welding connections.

特点：

Features:

适用于气囊FFC电缆、时钟弹簧带状电缆等特殊电缆的焊接。

气囊FFC时钟弹簧带状电缆的超声波焊机是一种用于焊接这些电缆的特殊设备。这种焊接机结合了超声波技术和专门设计的夹具，以实现可靠的焊接连接。

The ultrasonic welding machine for airbag FFC clock spring ribbon cables is a special equipment used for welding these cables. This welding machine combines ultrasonic technology and specially designed fixtures to achieve reliable welding connections.

特点：

Features:

适用于气囊FFC电缆、时钟弹簧带状电缆等特殊电缆的焊接。

Suitable for welding special cables such as airbag FFC cables and clock spring ribbon cables.

高效快速：超声波焊接机能够在短时间内完成焊接过程，提高生产效率。

Efficient and fast: Ultrasonic welding machines can complete the welding process in a short time, improving production efficiency.

稳定性和可靠性：通过超声波振动和压力的作用，确保焊接点的稳定性和可靠性。

Stability and reliability: Ensure the stability and reliability of welding points through the action of ultrasonic vibration and pressure.

可调节参数：焊接时间、压力和频率等参数可以根据具体要求进行调节。

Adjustable parameters: Welding time, pressure, and frequency can be adjusted according to specific requirements.

机器参数 Machine parameters

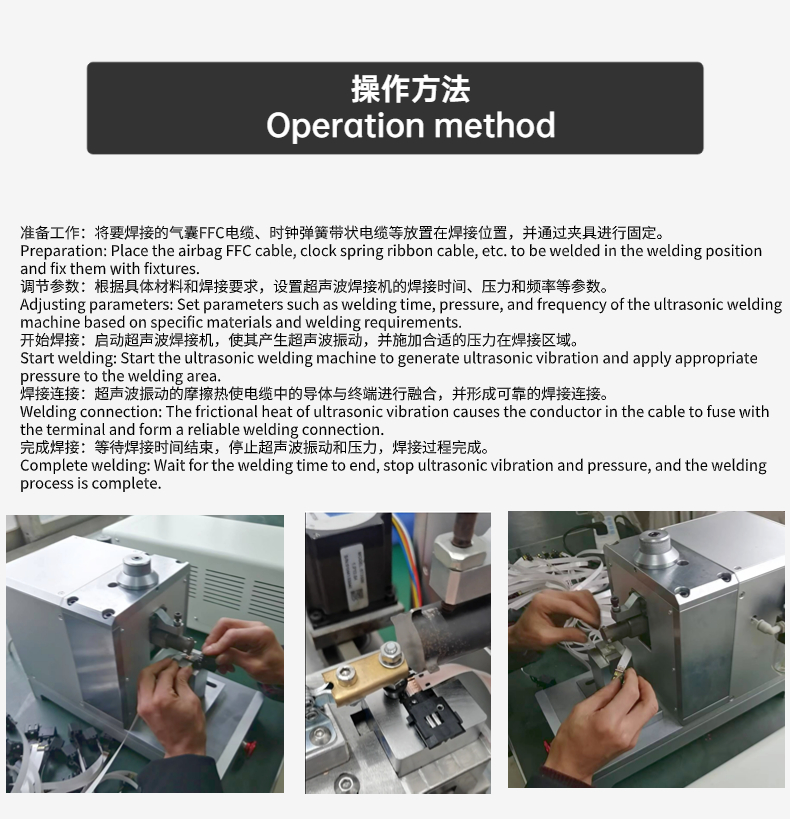

工作原理：

Working principle:

准备工作：将要焊接的气囊FFC电缆、时钟弹簧带状电缆等放置在焊接位置，并通过夹具进行固定。

Preparation: Place the airbag FFC cable, clock spring ribbon cable, etc. to be welded in the welding position and fix them with fixtures.

调节参数：根据具体材料和焊接要求，设置超声波焊接机的焊接时间、压力和频率等参数。

Adjusting parameters: Set parameters such as welding time, pressure, and frequency of the ultrasonic welding machine based on specific materials and welding requirements.

开始焊接：启动超声波焊接机，使其产生超声波振动，并施加合适的压力在焊接区域。

Start welding: Start the ultrasonic welding machine to generate ultrasonic vibration and apply appropriate pressure to the welding area.

焊接连接：超声波振动的摩擦热使电缆中的导体与终端进行融合，并形成可靠的焊接连接。

Welding connection: The frictional heat of ultrasonic vibration causes the conductor in the cable to fuse with the terminal and form a reliable welding connection.

完成焊接：等待焊接时间结束，停止超声波振动和压力，焊接过程完成。

Complete welding: Wait for the welding time to end, stop ultrasonic vibration and pressure, and the welding process is complete.

气囊FFC时钟弹簧带状电缆超声波焊机主要应用于以下范围：

Airbag FFC clock spring ribbon cable ultrasonic welding machine is mainly used in the following ranges:

汽车行业：气囊FFC电缆在汽车安全气囊系统中起着重要作用。超声波焊接机可用于焊接气囊FFC电缆的金属引脚，确保可靠的连接和传导性能。

Automotive industry: Airbag FFC cables play an important role in automotive airbag systems. Ultrasonic welding machines can be used to weld metal pins of airbag FFC cables, ensuring reliable connection and conductivity.

电子行业：时钟弹簧带状电缆常用于电子设备内部的连接，如计算机、手机、电视等。超声波焊接机可以焊接这些电缆的导体与终端，确保良好的电气连接。

Electronics industry: Clock spring ribbon cables are commonly used for internal connections of electronic devices, such as computers, mobile phones, televisions, etc. Ultrasonic welding machines can weld the conductors and terminals of these cables, ensuring good electrical connections.

工业制造：气囊FFC时钟弹簧带状电缆超声波焊接机也可应用于其他工业制造领域，如航空航天、家电、通讯等。这些行业中使用类似电缆的连接器或导线，超声波焊接机可以实现高效、稳定的焊接连接。

Industrial manufacturing: The FFC clock spring ribbon cable ultrasonic welding machine for airbags can also be applied in other industrial manufacturing fields, such as aerospace, home appliances, communication, etc. In these industries, connectors or wires similar to cables are used, and ultrasonic welding machines can achieve efficient and stable welding connections.
