Efficient Car Seat Headrest Foam and leather cover Installation machine

The car headrest includes internal fillers and external coverings. In order to ensure the overall durability of the car headrest and to ensure a good fit between the coverings and the fillings, the coverings are usually arranged with the fillings.

The size is the same and the opening is set smaller, and the filler is squeezed into the coating during processing. On the working platform, a compression part with a large feed opening and a small internal hollow and a pushing part for pushing the filler from the feed opening to the discharge opening are arranged. The automobile headrest filling machine has a simple structure, is easy to operate, and has good safety, which can improve the automation degree of automobile headrest processing, and can improve work efficiency and production quality.

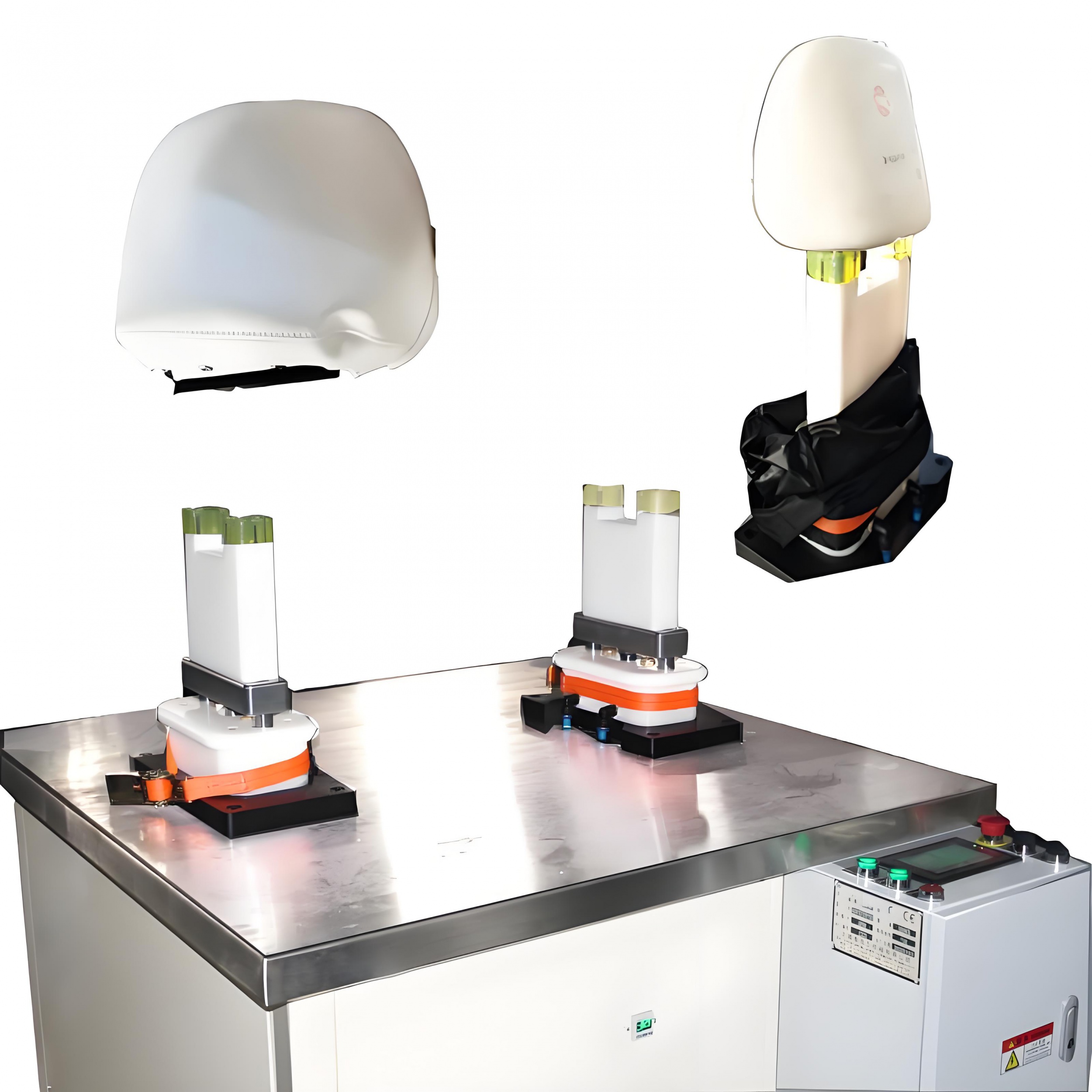

Equipment composition description

The equipment consists of two sets of tools, a machine, a vacuum pump, a vacuum tank and an electronic control system.

1) A vacuum pressure gauge for displaying, detecting and setting the maximum vacuum pressure.

2) Each tool is equipped with a pneumatic tee for switching the flow direction of the vacuum.

3) Each tool is equipped with a manual ball valve for adjusting the flow direction of the vacuum.

4) Each tool is equipped with a headrest branch pipe support for fixing the headrest, and the branch pipe support is replaceable (the size of the headrest branch pipe support depends on the customer's headrest model).

5) Each tool is equipped with a sealing sleeve for wrapping the headrest foam to form a closed space.

6) The sealing sleeve uses a cylinder with a guide to move up and down, with a stroke of about 350mm.

7) A proximity switch is installed at the end of the cylinder to open or close the vacuum.

8) An electric control cabinet with related electrical components.

9) Two knobs control the activation and deactivation of the two workstations respectively, without affecting each other.

10) A foot switch is provided for each to control the up and down of the cylinder and the sealing sleeve.

11) The vacuum compression time is determined by the manual control foot switch.

Shipping Port:Shanghai

Shipping Term:by air,by ocean .

Leading Time:Quick production leading time and fast delivery.Usually 25-30days

FAQ

1. What's the warranty of your Car headrest pneumatic filling machine?

One year Warranty with none human damage.

In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts on the cost price.

2. How can I get your price and catalog?

Please E-mail us or call us to give your contact information(your name, email address, company name, and website)

3. Can we agent your spin welding machines in our country or city?

Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.

4. How about payment?

100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.

5. Do you provide samples? is it free or extra?

Yes, we could offer the sample and it's not free.

6. could you make it according to our special requirements?

Of course, we can do that. Please tell us your idea or your application.
