surgical wound protector making machine

The one -time surgical wound protector can be retracted to the maximum of the incision to obtain a better operating field of vision, while protecting the incision wall, but do you want to know how he produced, go through three steps, the channel TPU film film film, the channel TPU membrane film film The sealing and the docking of the TPU tube are welded between the most critical step between the film and the tube. Our machine has been improved in three generations, and only the molds can not only adapt to the surgical wound protector of different specifications. To make it easier, the welding effect of the product and the stability of the equipment have been improved greater.

This device adopts the welding structure of the circular rail, which is controlled by the cylinder control mold holder with a itinerary of 150. The PLC man -machine interface is controlled, and the accuracy is high. The whole machine is easy to debug and stable performance. Practical models can adjust the gear (RPM) arbitrarily or semi -automatic or fully automatic production.

This equipment promotion agency can be divided into manual and automatic operations. Manual is a single action, which is mainly used for commissioning of institutions and molds. Enter the main operation screen on the PLC computer touch screen, and set the melting time, solidification time, delay time, and air pressure value according to the melting requirements of the workpiece.

Press the computer touch screen automatically, and step on the pedal switch under the foot at the same time. The process is controlled by PLC to achieve fully automatic control. Start the switch to the mold and weld the workpiece.

The production is automatically carried out, and the automatic control system uses a programmable controller (PLC) to control and the coherent movement of the cylinder. Simple operation, reliable performance, compact size, improvement of production efficiency and quality.

1. First of all, seal welding in the tPU film, and place the TPU membrane in the middle of the TPU membrane to hold the manual hands and place them in the lower work.

The welding of 2TPU tube is to be turned into a circular shape. According to the pipe diameter, holding the workers, put the tube into the pinch and step on the switch, and the device automatically completes the welding of the TPU tube.

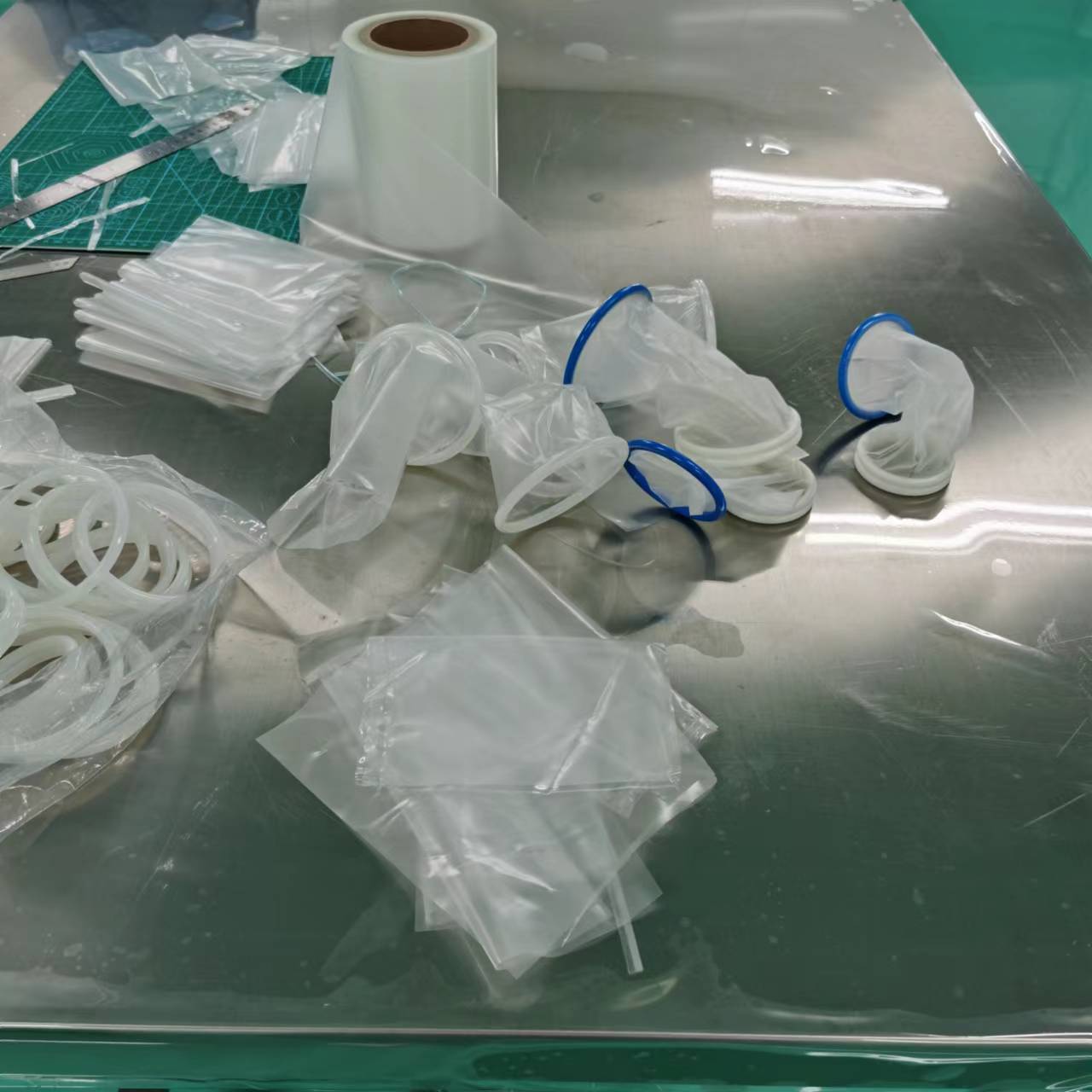

3. Welded TPU membrane and TPU tube welding are divided into single tubes and membrane welding and double tubes and membrane welding. A set of molds include a single and double tube mold. Which user can welded arbitrarily first. The steps are to first put the welded pipes on the mold, then the welded membrane is put into the mold. Finally, the switch is welded with both hands. The welding process is completed in three parts, and one -third of the welding is performed. It should be noted here that the tube incision protective kit is divided into inner and outer circles. The outer ring (single tube) of common manufacturers is 10mm larger than the outer diameter (double tube) outer diameter, and the inner cavity of the single tube will be added with wire. Because the size of the raw material selected by the single and double pipe is different from the shape, the welding mold workflow also has a difference, resulting in a set of two molds to assemble a set of barrel mold molds for one incision protection suit model.
