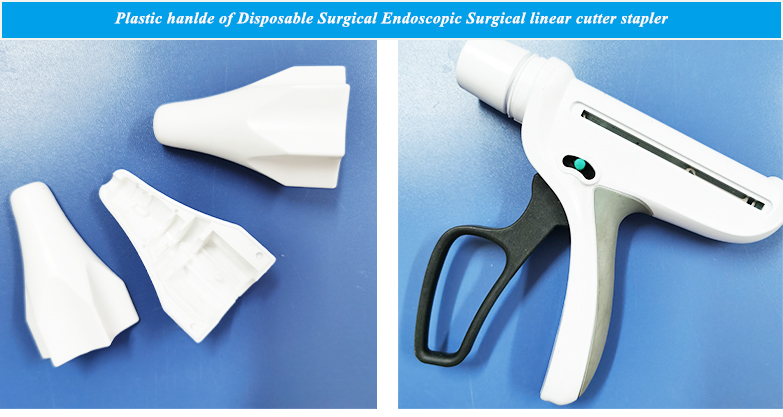

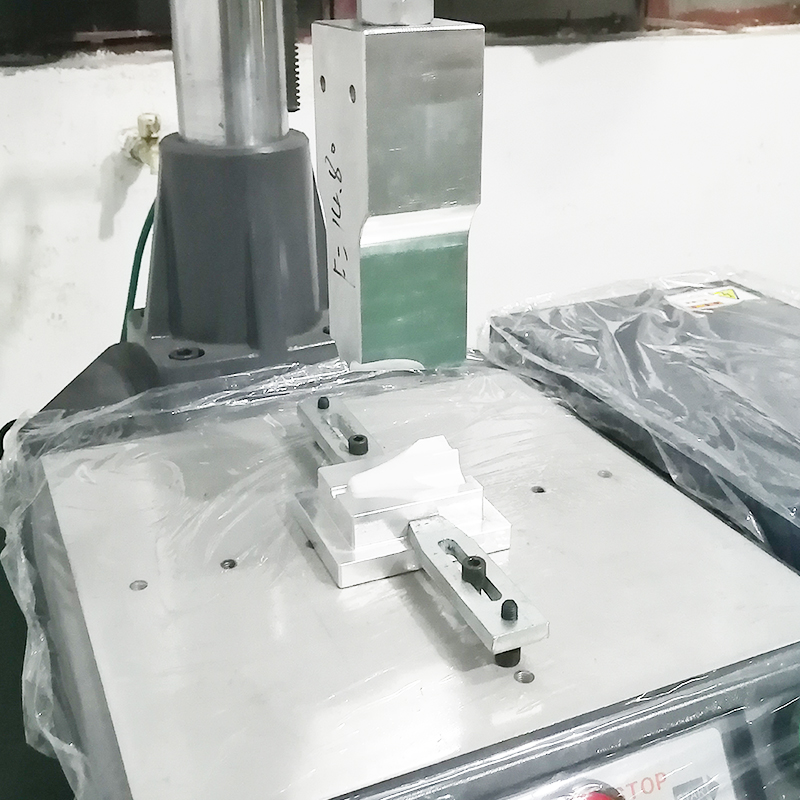

The plastic handle welding horn is a high-precision welding tool specially designed for the medical industry,Ultrasonic assembly welding machine for ABS plastic handle of Disposable Surgical Endoscopic Surgical linear cutter stapler .suitable for ultrasonic welding of plastic handle parts. This welding horn achieves efficient and firm welding through ultrasonic technology, ensuring the safety and durability of medical equipment.

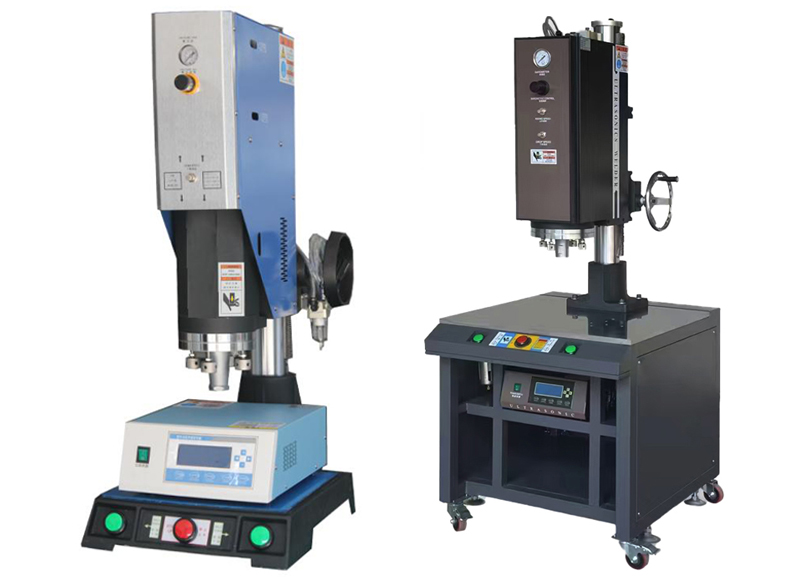

Machin parameter

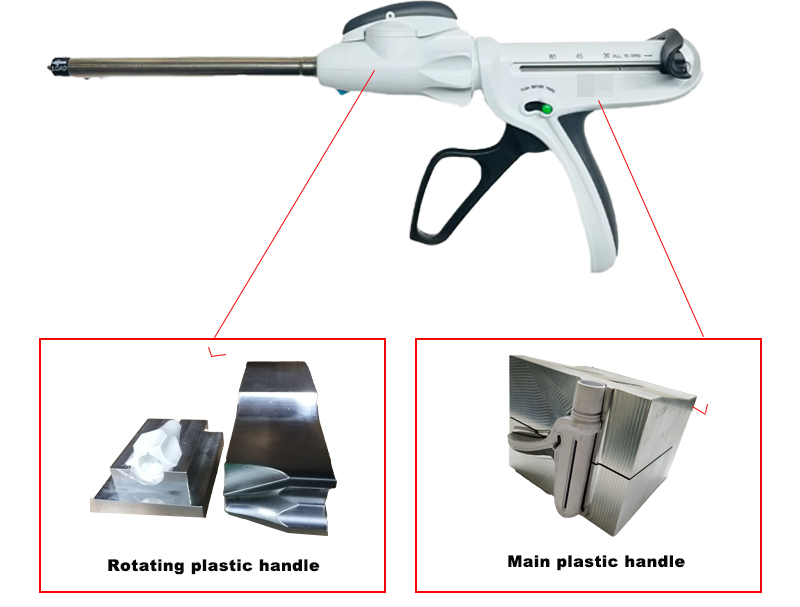

| Function | Roating plastic handle | Main plastic handle |
| Power | 2.6KW | 4.2KW |
| Frequency | 15khz | 15khz |
| voltage | 220v/50hz | 220v/50hz |
| Cylinder stroke | 75mm | 100mm |
| Operation model | Manual / Auto | Manual / Auto |
| rack structure | round column | round column |
| ultrasonic horn | customize | customize |
| Generator circuit | automatic frequency searching generator | automatic frequency searching generator |
| Cooling mode | air cooling | air cooling |
| Driving mode | pneumatic | pneumatic |
| Output time | 0.01-9.99 | 0.01-9.99 |
| Overall size | 400*600*1000mm | 880*850*2250mm |
| Safety Features | Emergency Stop Button, Overload Protection | Emergency Stop Button, Overload Protection |
| Weight | 80kg | 300kg |
| Control mode | 485 communication
| 485 communication
|

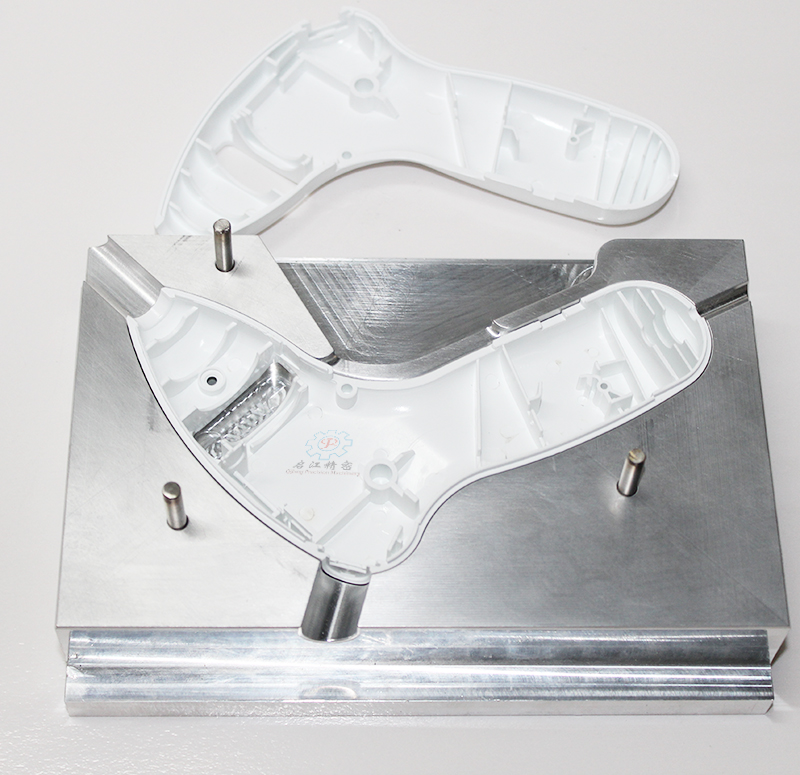

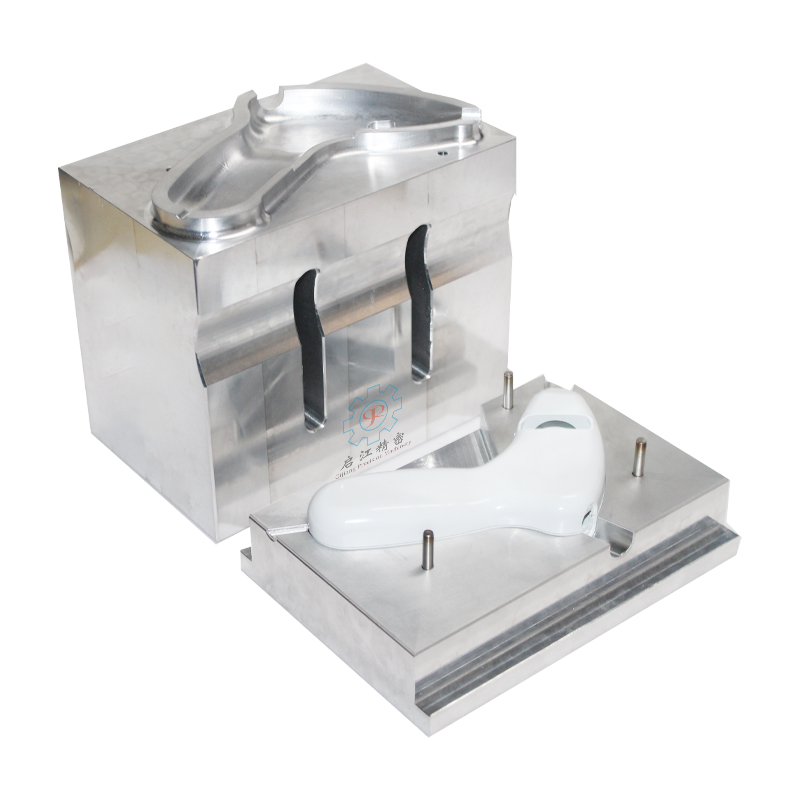

Main ultrasonic horn Features
Material: Made of high-strength, wear-resistant titanium alloy or aluminum alloy, ensuring the durability and stability of the welding horn.
Design: Customized design according to the shape and size of the plastic handle to ensure accurate and uniform welding effect.
Frequency range: 15kHz, which can be adjusted according to specific application requirements.
Compatibility: Compatible with various ultrasonic welding machines, including Branson, Herrmann, Dukane and other brands.
Precision: High-precision processing to ensure good matching and consistency during welding.
Corrosion resistance: With good corrosion resistance, it is suitable for various medical environments.
Applications
Medical devices: such as welding of plastic handles such as syringes, inhalers, surgical tools, etc.
Laboratory equipment: including various plastic experimental utensils that require precision welding.
Personal care products: such as welding of handle parts such as toothbrushes and electric shavers.
Advantages
Efficient welding: Ultrasonic welding technology can complete high-quality welding in a short time and improve production efficiency.
No pollution: No glue or other chemicals are used in the welding process to avoid pollution.
Strong and durable: The welded joint is strong and can withstand various stresses in the medical environment.
Precision control: The welding parameters are adjustable to ensure the accuracy and consistency of each welding.
How to use
Installation: Install the welding horn on the ultrasonic welding machine to ensure tightness.
Debugging: Adjust the frequency and power of the welding machine according to the material and thickness of the plastic handle.

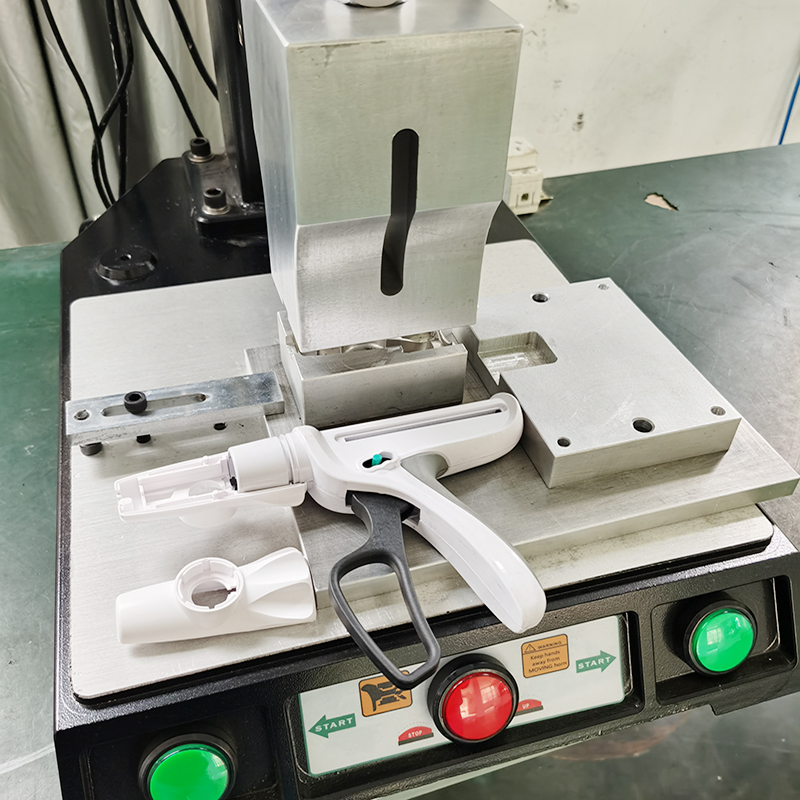

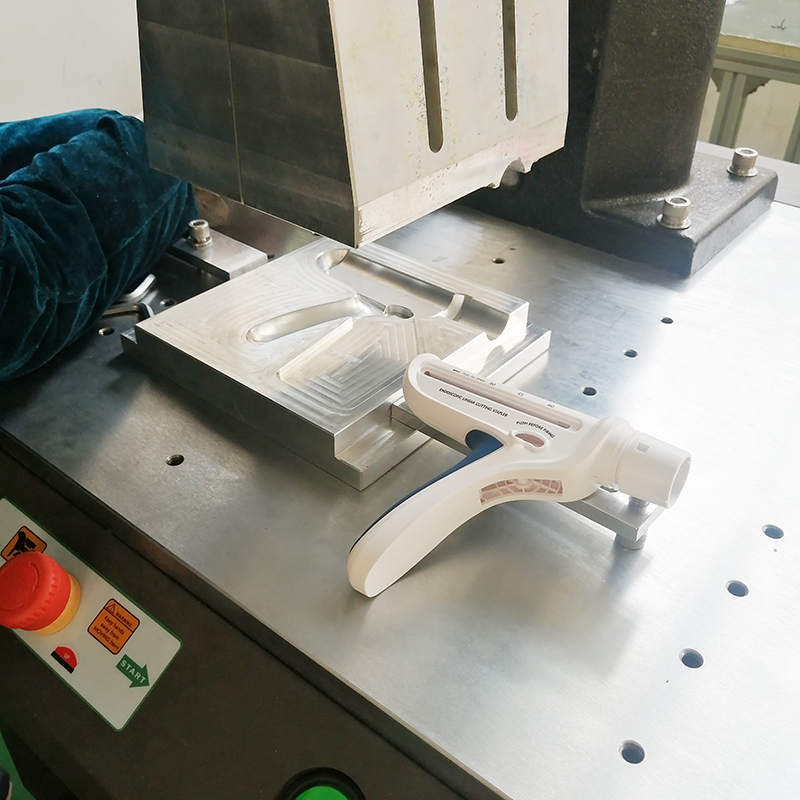

Welding: Place the plastic handle in the welding position, start the welding machine, and weld.
Inspection: After welding, check the quality of the joint to ensure that there are no defects.
Care and maintenance
Regular inspection: Check the wear of the welding horn regularly and replace the severely worn parts in time.
Cleaning and maintenance: Clean in time after use to avoid residue accumulation that affects the welding effect.
Storage environment: Store in a dry and dust-free environment to avoid the influence of corrosive substances.
Packaging and delivery
Packaging: Use shockproof and dustproof packaging materials to ensure safety during transportation.
Delivery: Provide fast and reliable logistics services to ensure that the products are delivered to customers in time.
Order information
Minimum order quantity: Customizable according to customer needs.
Delivery time: Generally shipped within 2 weeks after order confirmation.
