In the production of plastic shower, ultrasonic welding is typically used to join two plastic components together. The common parts that are welded include:

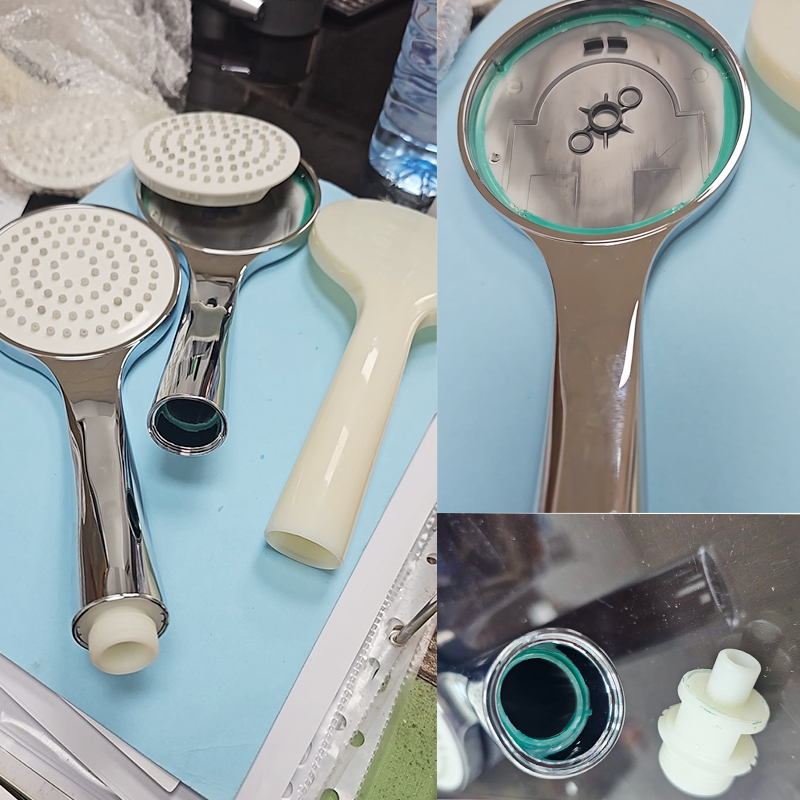

1. Spray Nozzle and Outer Shell Connection
Welding Area: The spray nozzle (usually containing the water outlets) and the outer shell of the showerhead (the handheld part or connecting components).
Function: This welded joint secures the spray nozzle to the handheld shell, ensuring a tight seal and stability to prevent water leakage.
2. Water Inlet and Main Body Connection
Welding Area: The water inlet connection and the main body of the showerhead (typically the part that connects to the water pipe or adjustment components).
Function: Ultrasonic welding is used to attach the water inlet to the main body of the showerhead, ensuring smooth water flow without leakage.
Machine parameter:
| Model | 15K-4200W |
| Frquency | 15KHZ |
| Power | 4200W |
| Working voltage/gas source | 220V±10% / 0.2~0.7Mpa |
| Welding stroke | 100MM |
| Lifting mode | Hand crank |
| Leveling plate | L750W670 |
| Cooling system | Air Cooling |
| Control system/transducer system | QDSONIC |
| Assisted Management | Preparation/Ending Actions | 0-10S |
| Duplex | Not supported |
| Working rack | cylinder |
| Working base | Luxury Table |
| Body color | grey |
| Body size | L750×W900×H1900 |
| Net weight | ≤260kg |
| User Interface | 4.3-inch touch screen |
| System language | Chinese/English |
| System Security | Manage Passwords |
Strong Sealing: Ultrasonic welding creates a strong joint between the plastic parts, preventing water leakage.
Efficiency: The welding process is fast, making it suitable for high-volume production.
Environmentally Friendly: No additional adhesives or chemical materials are needed, making the welding process clean and pollution-free.

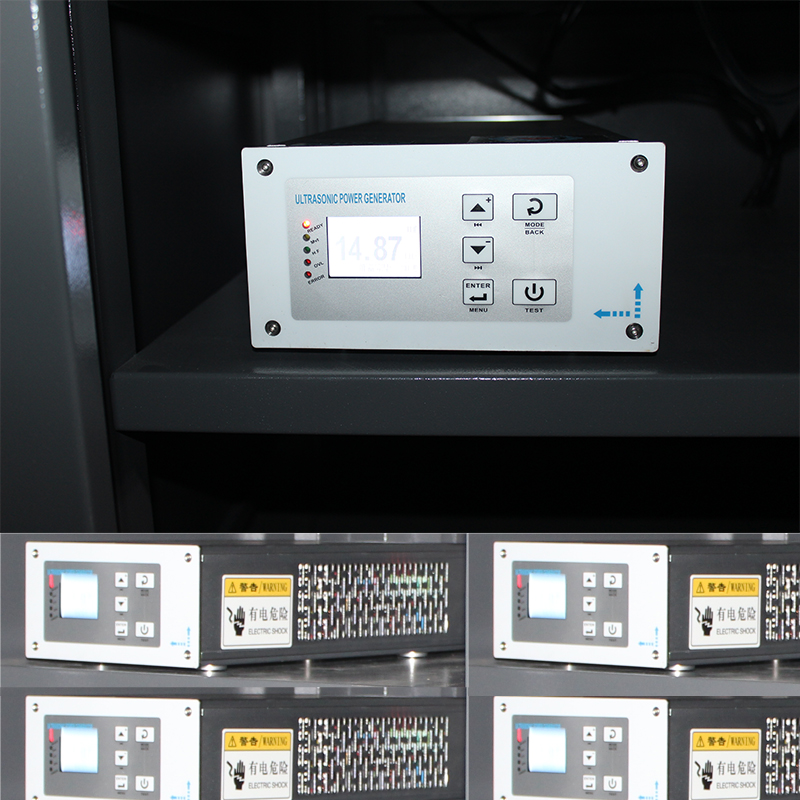

Digtal Power Generator

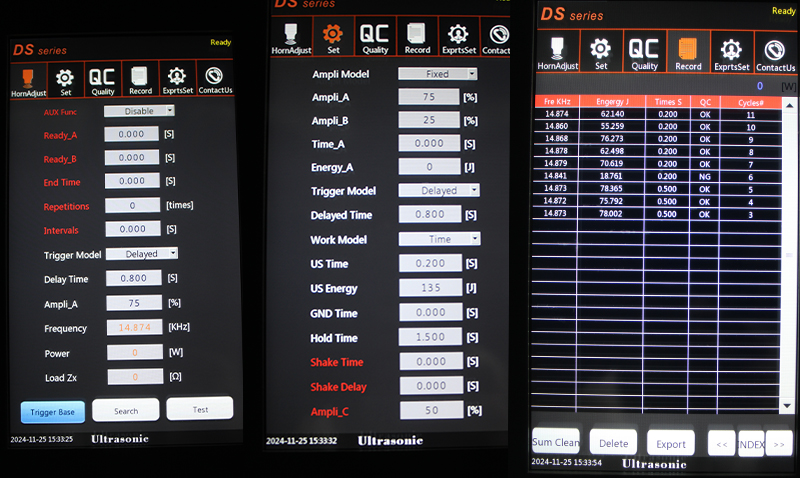

Welding Parameter Setting Interface
Ultrasonic welding is a highly effective and efficient method for manufacturing plastic shower components, including showerheads, valves, hose connectors, and wall panels. The process offers strong, durable, and leak-proof seals without the need for adhesives, making it ideal for high-quality, water-resistant products. Ultrasonic welding machines for plastic showers provide high-speed production, clean welds, and reliable performance, helping manufacturers meet the demands of the modern shower industry while maintaining cost-effectiveness and environmental sustainability.
