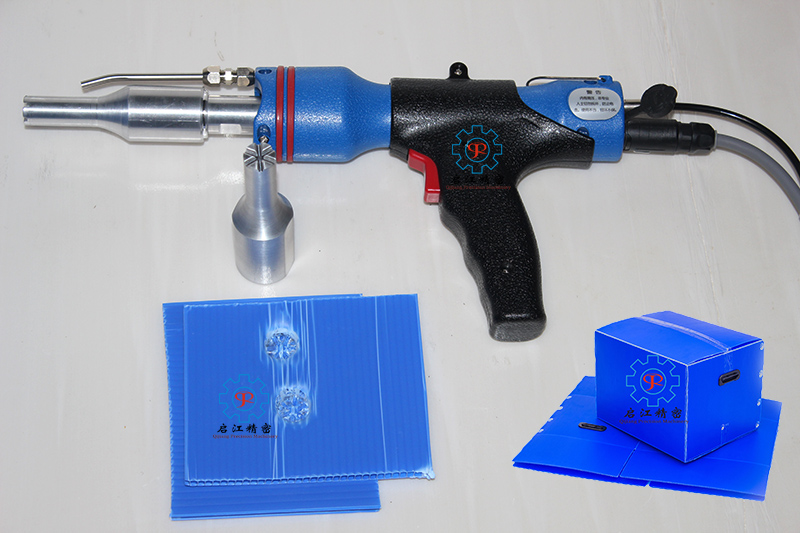

Portable PP Plastic Corrugated Box handheld welding machine operation description

A PP (polypropylene) plastic corrugated box ultrasonic welding machine, handheld, is a device used for joining together plastic materials using ultrasonic vibrations. Here's a breakdown of its components and how it works:

Handheld Design: Unlike larger, stationary ultrasonic welding machines, a handheld device is portable and allows for more flexibility in welding smaller or irregularly shaped plastic components, such as corrugated boxes.

1. Ultrasonic Welding Principle: Ultrasonic welding uses high-frequency ultrasonic vibrations to generate heat at the interface of the two plastic parts to be joined. This heat melts the plastic locally, creating a strong molecular bond when the parts are pressed together.
2. Components:Transducer: Converts electrical energy into mechanical vibrations.Booster: Amplifies and modifies the amplitude of the vibrations.Horn (or Sonotrode): Focuses the vibrations onto the parts to be welded.Anvil: Supports the parts being welded and provides a counterforce to the applied pressure.
3. Operation:The operator holds the handheld ultrasonic welding machine and aligns the horn with the parts to be welded.When the trigger is pressed, the transducer converts electrical energy into ultrasonic vibrations.These vibrations travel through the horn and are applied to the interface of the plastic parts.The friction generated by the vibrations causes localized heating, melting the plastic.The operator applies pressure to the parts, ensuring proper bonding.Once the welding is complete, the operator releases the trigger, and the welded parts cool and solidify, forming a strong bond.

4.


5.Advantages:

Portable and handheld design allows for flexibility in welding various parts.Fast and efficient process.No need for additional materials like adhesives or solvents.Produces strong, reliable welds with consistent quality.

6.Applications:

Joining of plastic corrugated boxes and containers.Automotive industry for assembling plastic components.Electronics industry for bonding plastic housings and components.Medical device manufacturing.Packaging industry.

On the other hand :we hava a anthoer welding machine for  corrugated pp plastic box ,With a rack .It only only increase the productions,Reduce the labor intensity of workers.At the same time,More and more customers chose our these two kinds of machine for mantance.It is popular in plastic packing industry.

Operation steps

1.Place the workpiece-Place the hollow plate workpiece to be welded on the welding mold to ensure accurate alignment.

2.Start welding-Press the start button or step on the foot switch, the welding head drops and starts welding.

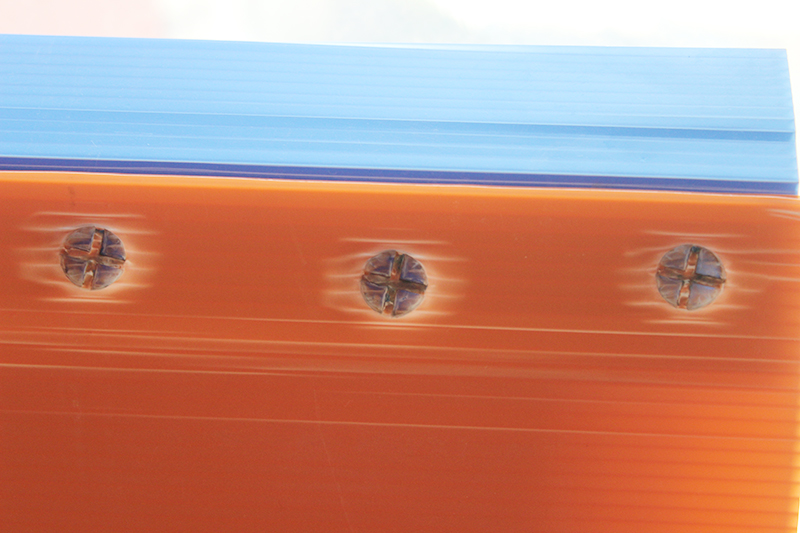

3.The equipment welds the hollow plates together through high-frequency vibration.

4.Welding is completed-After the welding time is over, the welding horn automatically rises and the welding is completed.

5.Take out the welded workpiece and check the welding quality.
