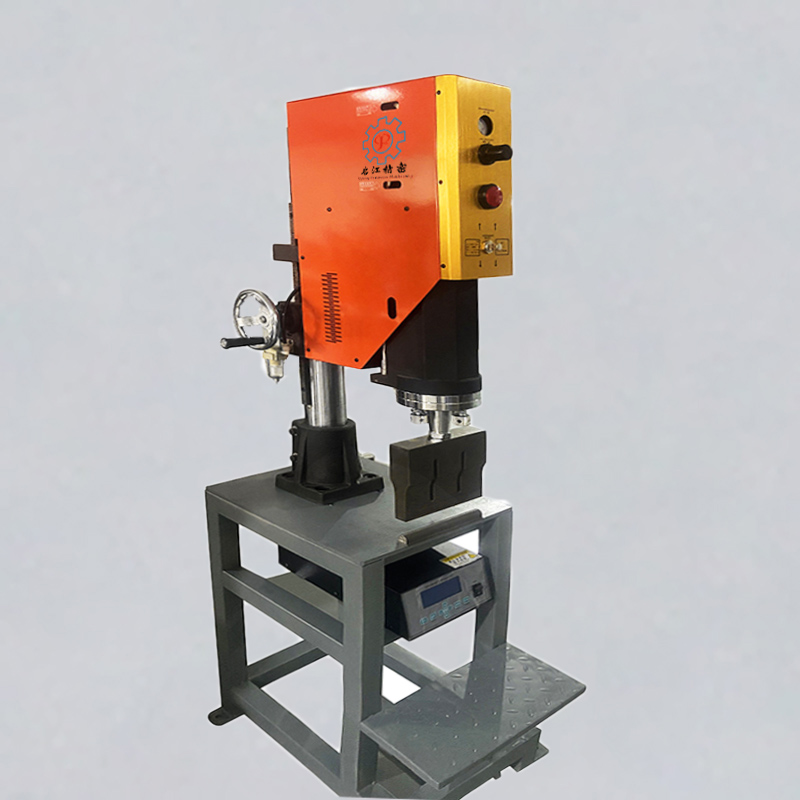

Putty powder valve pocket ultrasonic sealing machine

Specifications:

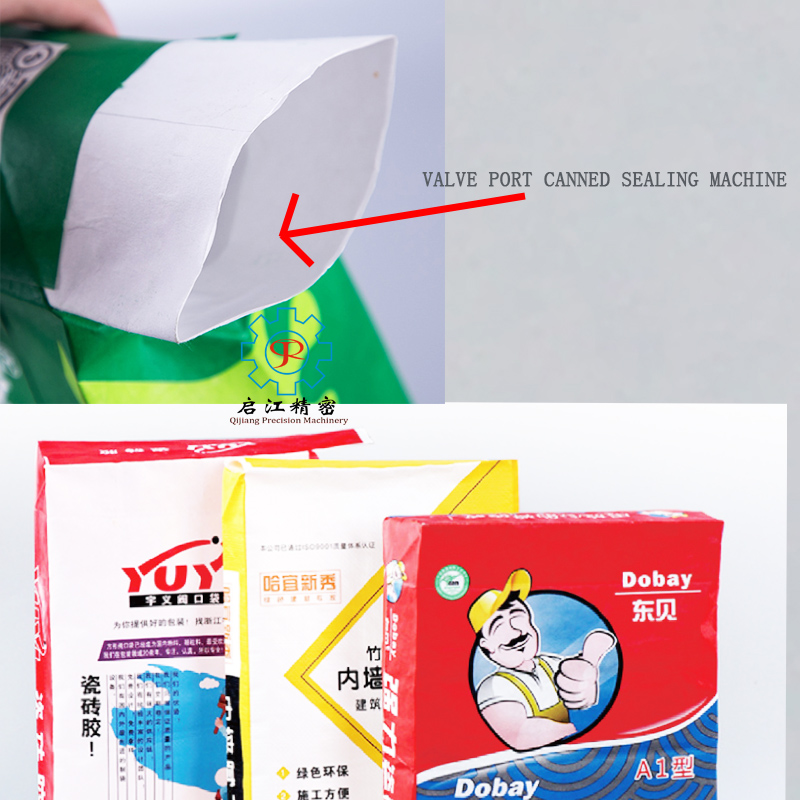

The putty powder packaging bag is a three-layer kraft paper with film valve port, which is commonly known as a paper plastic composite bag. It is mainly composed of woven fabric, kraft paper and PE film. Since the putty powder is stuck to the valve pocket after the putty powder is filled in the tank, it is difficult to seal it with an ordinary hot-melt sealing machine, while PE plastic is suitable for ultrasonic welding. Its working principle is that the high-frequency signal is generated through the oscillation circuit and converted into mechanical energy by the transducer, The energy is transmitted to the contact surface of the valve pocket through the welding head, and the joint surface of the workpiece at the pocket mouth is severely rubbed and melted with hundreds of thousands of vibrations per second and pressure.

After the filling step, the sealed valve pocket will not break through the valve port when it is welded with ultrasonic wave. It is easy to operate and has beautiful forming. It will not break when it falls upstairs! Since the bag body is provided with tiny vent holes, the air can be exhausted during filling, and the materials will not be sprayed out.

Advantages: after packaging, the valve port is heated and bonded, with strong sealing performance

When you decide to buy Ultrasonic accessories and welding machine, we support four different payment methods for you to choose

More ultrasonic welding Plastic machine technical questions ,kindly email us

Welding Machine Operation video

FAQ

1. What's the warranty of your ultrasonic spin welding machines?
One year Warranty with none human damage.
In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts on the cost price.
2. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
3. Can we agent your spin welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
4. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
5. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
6. could you make it according to our special requirements?

Of course, we can do that. Please tell us your idea or your application.
