Specifications:
Function XR-2900 XR-4400 XR-5500 Machine size 750*900*1900MM 750*900*1900MM 750*900*1900MM Platform size 650*900MM 650*900MM 650*900MM weight 380KG 380KG 380KG Cylinder stroke 100MM 100MM 100MM Power Supply 380V/50HZ 380V/50HZ 380V/50HZ Driving mode Pneumatic / electric Pneumatic / electric Pneumatic / electric control mode PLC PLC PLC power 2900W 4400w 5500w Welding area Φ150mm Φ300MM Φ300MM motor speed 0-3000 0-3000 0-3000 Lap speed 0-100 0-100 0-100
Description:

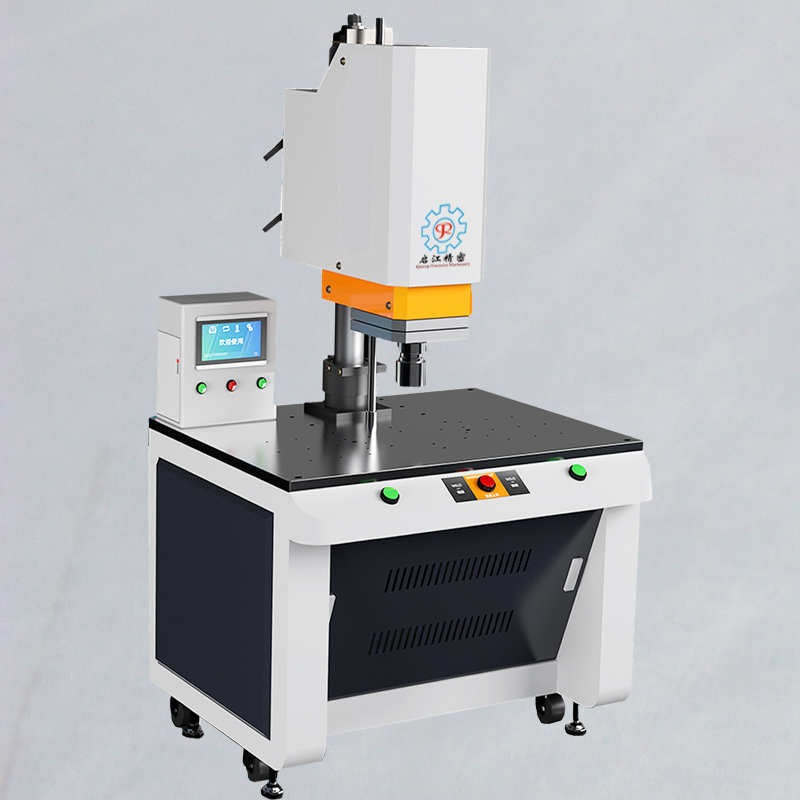

Spin Welding Machine, plastic Rotary Welder, PLC touch screen, clear operation introduction and good experience,The three-phase dry-type transformer can improve the voltage, reduce the power transmission loss and reduce the service life of the equipment.
Features
The principle of high-speed vibration rotation friction heat generation makes the fusion surface of plastic processing materials dissolve and achieve the effect of fusion. The rotary melting machine adopts excellent control system, imported servo motor drive, stable and accurate operation, and adopts imported man-machine interface as the operation platform. It is simple and convenient to use. The stop position can be set arbitrarily according to the needs to make the product achieve positioning welding
Function
1.High torque, high efficiency, operation resistance and high practicability. The speed change time can be adjusted arbitrarily.
2. The imported man-machine interface is used as the operation platform, which is simple and convenient to use.

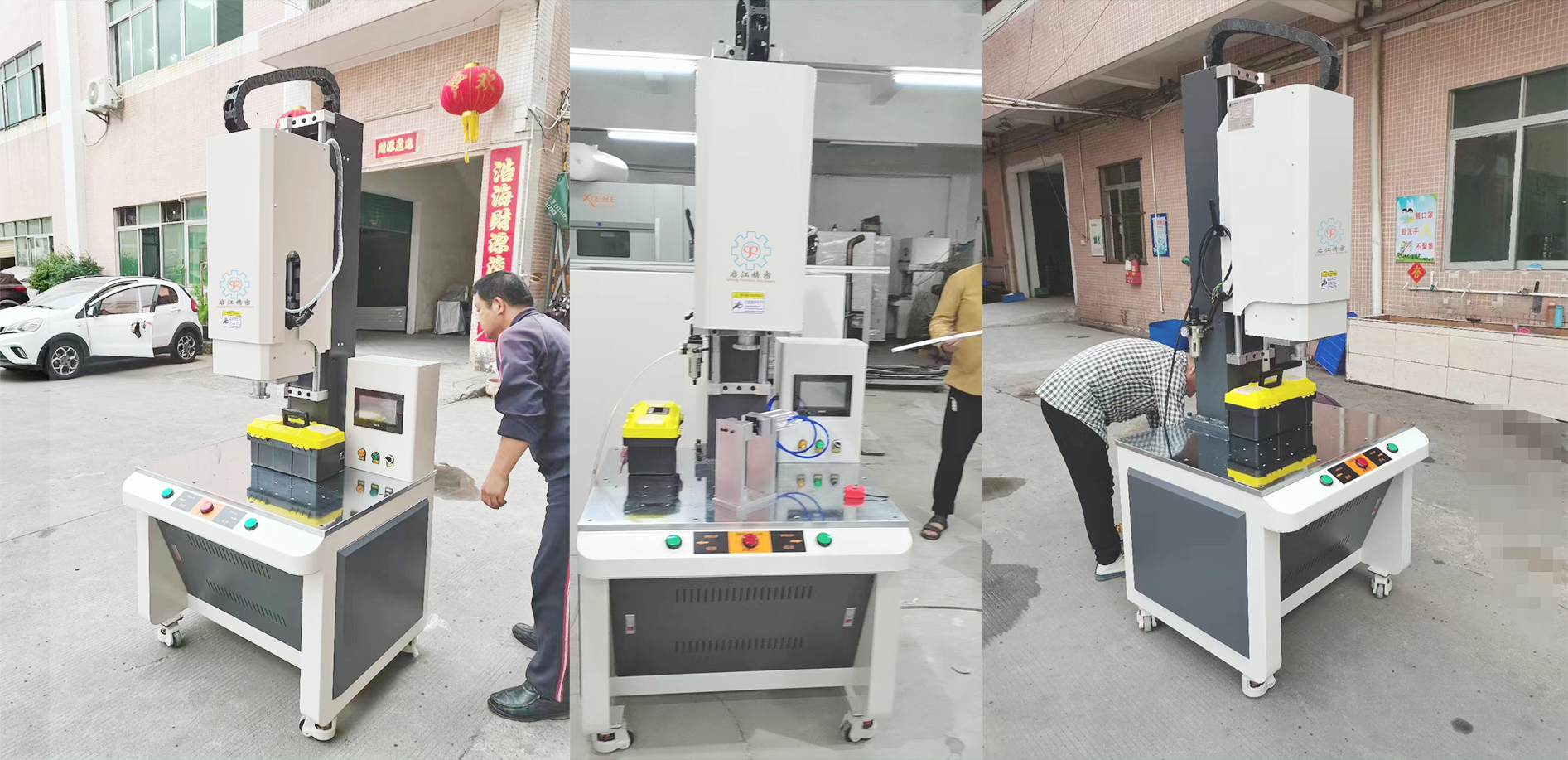

Introduction to equipment structure
Double guide pillar structure, stable lifting process of welding head and good welding quality. Note: square column is adopted for 5.5kWccequipment FESTO cylinder: the buffer adjustment function makes it cylinder piston run smoothly without impact sound 3.PLC touch screen, clear operation introduction and good experience
4.Using Yaskawa servo motor, the maximum speed can reach 6000 RPM: the efficiency is increased, and the peak torque is increased to 350%, which greatly enhances the vibration control function
5.The three-phase dry-type transformer can improve the voltage, reduce the power transmission loss and reduce the service life of the equipment
Operation
The positioning fixture is made according to the size of the workpiece. The contact surface with the workpiece is anti-skid soft glue. Put the installed welded plastic parts in the fixed position in the fixture, press the switch, the cylinder acts to clamp the workpiece, the rotating motor on it drops, and the cylinder body spirals along the clock direction after contacting with the cylinder cover. The principle is that the friction and heating of the rubber parts cause the decomposition and fusion of polymer raw materials.
Advantage:
Low cost , quick welding horn changing , minimum the operating cost , good matching between welding horn and transducer , high precision , which ensure the good sealing of round plastic .
Packing&Shipping :
Shipping Port:Shanghai
Shipping Term:by air,by ocean .
Leading Time:Quick production leading time and fast delivery.Usually 7-20-days
Payment:
When you decide to buy Ultrasonic accessories and welding equipment, we support four different payment methods for you to choose
More Spin Welding Machine Rotary Welder For Tubular Plastic Parts technical questions ,kindly email us
Welding Machine Operation video
VIDEO
FAQ
1. What's the warranty of your ultrasonic spin welding machines? One year Warranty with none human damage. In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts on the cost price. 2. How can I get your price and catalog? Please E-mail us or call us to give your contact information(your name, email address, company name, and website) 3. Can we agent your spin welding machines in our country or city? Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term. 4. How about payment? 100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment. 5. Do you provide samples? is it free or extra? Yes, we could offer the sample and it's not free. 6. could you make it according to our special requirements? Of course, we can do that. Please tell us your idea or your application.
